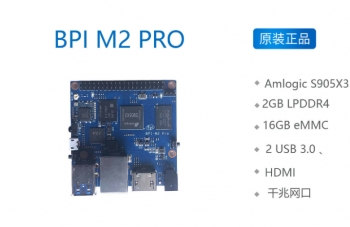

Banana Pi BPI-M2 Pro

Banana Pi BPI-M2 Pro是Banana Pi公司于2021年推出的下一代单板机。它采用Amlogic S905X3四核Cortex-A55 (2.0 XXGHz)处理器。板载2GB LPDDR4内存和16GB EMMC存储，支持2个USB 3.0接口，1个千兆网口。板载RT8821CU wifi&BT。1 HDMI输出 905X3是晶晨半导体旗下的8K智能家庭影音芯片，采用四颗64位ARM A55架构 CPU芯片，集成G31图形处理器，支持8K视频解码和8K视频输出，运行开放的安卓9.0系统和Linux系统。

主要特点:

Amlogic S905X3 四核Cortex-A55 (2.0xxGHz)处理器
Mali-G31 GPU图形处理器
2GB LPDDR4内存
16GB eMMC 板载存储.
板载RT8821CU wifi&BT
2 USB 3.0 端口
1 GbE 千兆网口
HDMI 输出

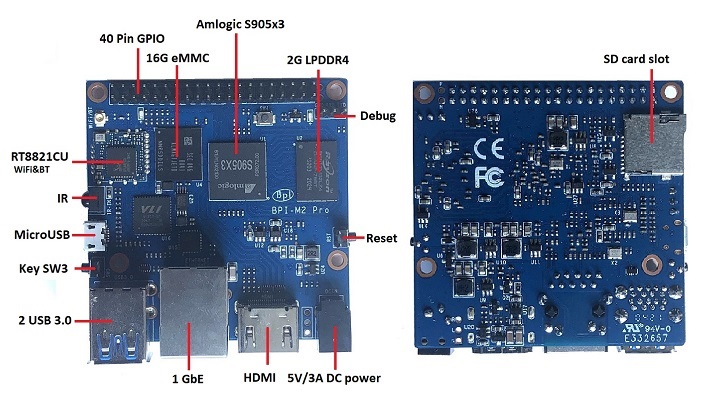

硬件信息

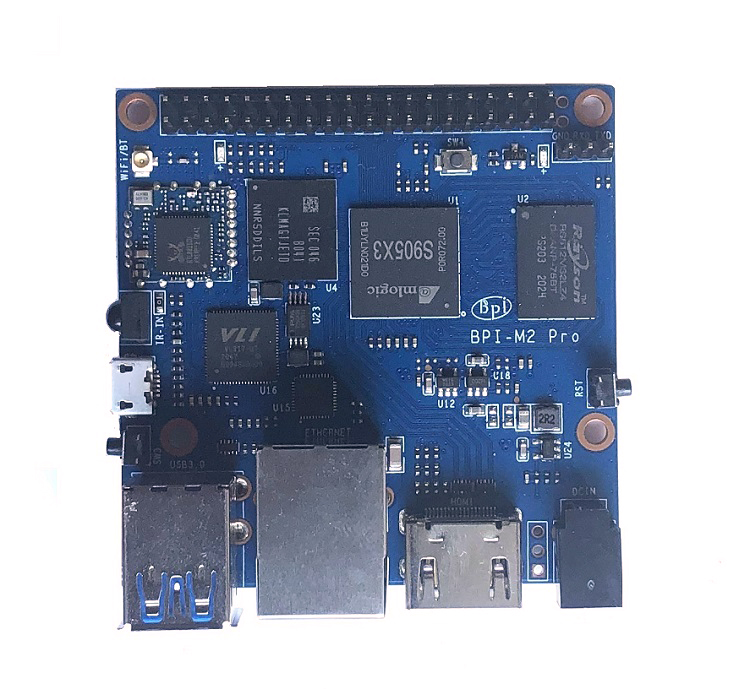

香蕉派BPI-M2 Pro 与香蕉派 BPI-M5 一样采用Amlogic S905x3芯片方案，但在尺寸与接口上完全与香蕉派 BPI-M2+一致，用BPI-M2+做产品的客户，可以直接升级替换。
接口参数：
香蕉派BPI-M2 Pro ,M5, Odroid C4 和 Raspberry Pi 4硬件规格比较表

GPIO PIN 定义

BPI-M2 Pro 40PIN GPIO (CON2)

GPIO Pin Name	Default Function	Function2	Function3
CON1-P01	VCC-3V3
CON1-P02	VCC5V
CON1-P03	GPIOX_17	I2C_M2_SDA
CON1-P04	VCC5V
CON1-P05	GPIOX_18	I2C_M2_SCL
CON1-P06	GND
CON1-P07	GPIOX_5 SDIO_CMD
CON1-P08	GPIOX_12	UART_A_TX
CON1-P09	GND
CON1-P10	GPIOX_13	UART_A_RX
CON1-P11	GPIOX_3 SDIO_D3
CON1-P12	GPIOAO_8	TDMB_SCLK
CON1-P13	GPIOX_4 SDIO_CLK
CON1-P14	GND
CON1-P15	GPIOX_7 PWM_F
CON1-P16	GPIOX_0 SDIO_D0
CON1-P17	VCC-3V3
CON1-P18	GPIOX_1 SDIO_D1
CON1-P19	GPIOX_8 PCM_DIN
CON1-P20	GND
CON1-P21	GPIOX_9 PCM_DOUT
CON1-P22	GPIOX_2 SDIO_D2
CON1-P23	GPIOX_11	PCM_CLK
CON1-P24	GPIOX_10	PCM_SYNC
CON1-P25	GND
CON1-P26	GPIOX_16	PWM_E
CON1-P27	GPIOA_14	I2C_M3_SDA
CON1-P28	GPIOA_15	I2C_M3_SCL
CON1-P29	GPIOX_14	UART_A_CTS
CON1-P30	GND
CON1-P31	GPIOX_15	UART_A_RTS
CON1-P32	GPIOX_19	PWM_B
CON1-P33	GPIOX_6 PWM_A
CON1-P34	GND
CON1-P35	GPIOAO_7	TDMB_FS
CON1-P36	GPIOH_5 SPDIF_IN
CON1-P37	GPIOAO_7	I2S_MCLK
CON1-P38	GPIOAO_10	TDMB_DIN	SPDIF_OUT
CON1-P39	GND
CON1-P40	GPIOAO_4	TDMB_DOUT
