Rockchip RK3566 64bit quad core based Mini SBC
Quadcore power with up to 8GB LPDDR4 RAM with the dimensions of an USB-stick.

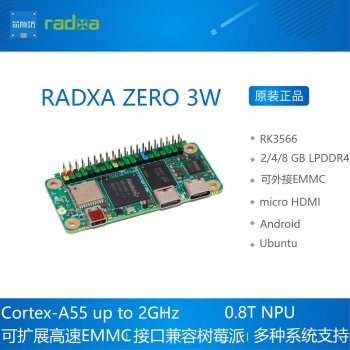

RADXA Zero 3W product details
Rockchip RK3566 64bit quad core processor
Quad‑core Arm® Cortex®‑A55 (ARMv8) 64‑bit @ 1.6GHz
GPU
Arm Mali™‑G52‑2EE, OpenGL® ES1.1/2.0/3.2, Vulkan® 1.1, OpenCL™ 2.0
Memory LPDDR4
LPDDR4 1GB /2GB /4GB /8GB
WiFi/BT onboard (WiFi4+BT5 and WiFi5+BT5 variants)
WiFi4 (802.11 b/g/n) /BT5.0 with onboard antenna and uFL connector*
WiFi5 (802.11 ac) /BT5.0 with onboard antenna and uFL connector*
* antenna option can be configured via software
Storage eMMC 5.1
soldered high performance eMMC 5.1 with capacities of 8GB/ 16GB/ 32GB/ 64GB
Micro SD card
uSD slot supports up to 128G uSD card
Display Micro HDMI
Micro HDMI 1080p@60fps
Peripherie
HD codec H.264/H.265 decoder 4Kx2K@60fps
USB 2.0 Type-C HOST x1
USB 2.0 HOST
USB 2.0 Type-C OTG x1
USB 2.0 OTG (for power and data)
MIPI CSI x1
USB 2.0 OTG (for power and data)
Network (2 variants)
Wireless 802.11 bgn, WiFi 2,4GHz, Bluetooth 5.0
Wireless 802.11 ac, WiFi 5GHz, Bluetooth5.0
IO 40-pin expansion header (depending on the model):
- up to 5 x UART
- 1 x SPI bus
- up to 2 x I2C bus
- 1 x PCM/I2S
- up to 6 x PWM
- up to 28 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin
Software
- ARMv8 Instruction Set
- Debian/Ubuntu Linux support
- Hardware access/control library for Linux
Others
Maskrom button
Size 65mm x 30mm
