PENTA SATA KIT for Rock Pi 4 Model C
Easily build your own PCIe based NAS / Media-server with a Rock Pi 4 C
*order reward (free 60W DC power supply)!
Description
mount up to 4x 2.5" HDD or SSD (max height 9.5mm) + 1x ext HDD or SSD
esatap connector for external SSD/HDD
Software RAID 0/1/5
HDD/SSD status LED online/activity/fault
Utilizes PCIe gen2 4 lanes interface on Rock Pi 4
DC power input for Rock Pi 4, 4x 2.5inch sata drives and 1x esatap 2.5 or 3.5" HDD/SSD
HDD suspend mode supported
UASP support
Internal capacity up to 32TB (e.g. 4x 8TB SSD)
PWM controlled fan for HDD heat dispatching
OLED display for IP Address/Storage info
does only work with Rock Pi 4 Model C
huge heat-sink for Rock Pi 4 included (30% bigger)
easy to set up and run
Size (L/W/H) 94 x 70 x 175 mm

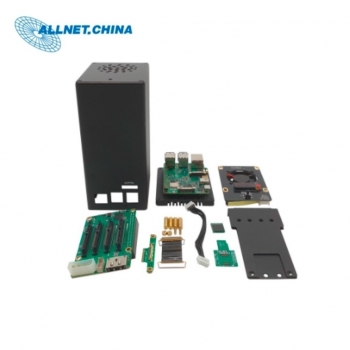

Product Content
PENTA SATA HAT board
SATA HAT Top board, management board including OLED status display and active cooling
HAT connector cable
ecoPI Penta Sata case (aluminum)
High performance ribbon data cable and connector
heat sink for Rock Pi 4
What is so special?
smaller than a bottle of Coke
fits into the smallest book shelf
PCIe gen2 based SATA interface
PWM controlled fan
high internal capacity up to 32TB (e.g. 4x 8TB SSD)
economically as a surveillance system
fast as media server / cloud server
backup server for your home
OLED display for status information
Backup your NAS with e.g. an external 3.5" esatap powered drive of your choice!
nice lean design
IMPORTANT:
You need to use a 12V (>=5A) >=60W DC Power supply to run this NAS!
Does only work with Rock Pi 4 Model C!
eMMC is needed to boot the device (because of stability and limited space)
Just add your Rock Pi 4C and eMMC to this kit and your blasting NAS is complete!
