Build your NAS based on Rock Pi 4 with up to 5 HDD/SSD and up to 100TB capacity

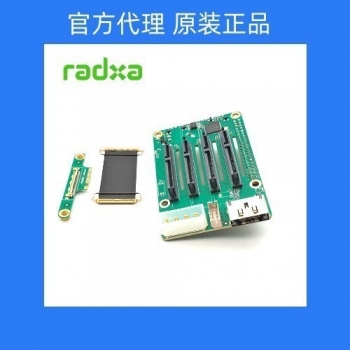

The Penta SATA HAT utilizes the M.2/PCIe interface on Rock Pi 4 to provide up to 5 SATA ports. This HAT works only with Rock Pi 4 mounted on the heat sink.
The concept of 4 internal SATA and one eSATAp design was chosen because it makes the setup more flexible for the use of external disks.
Features
Up to 5x HDD/SSD, 2.5inch and 3.5inch storage is supported, max storage 100TB
4x SATA
1x eSATA with power
utilizes two lanes of the PCIe 2.1 bus on Rock Pi 4
DC power input with support for both 2.5inch drives and ROCK Pi 4
External standard ATX power supply support for 3.5inch HDD
HDD suspend mode support
Software RAID 0/1/5 support
Optional PWM control fan for HDD heat management
Optional OLED display for IP / Store information
PLEASE NOTE: You need to order the heat-sink with the Rock Pi 4 otherwise the Penta HAT can not be mounted on top!
eSATAp
To fully take advantage of the 5th SATA port, an eSATA connector was implemented which can be exported e.g. out of the case. The eSATA connector provides both data and power. It can directly drive a 3.5inch HDD via a single cable.
